Caterpillar Company Logo   SPS730 and SPS930 Universal Total Stations

Nothing else comes close. Trimble Universal Total Stations lead the industry in accuracy, range and reliability for fine grading, paving, stockpile scanning and site measurements.


Patented Trimble technology ensures you’re getting the best performance on jobs that require the tightest precision with the fastest update rate available today.


MultiTrack™ technology

  • Locks on and tracks passive prisms for control measurements, and active prism targets for grade control and paving applications.
  • Prevents costly delays and subsequent rework; faster speed means increased productivity and faster results to grade.

MagDrive™

  • Turns the instrument up to 115° per second. Patented high speed Trimble MagDrive technology allows for faster grading closer to the total station.
  • For measurement tasks, MagDrive offers fast pointing, aiming and tracking, plus slow motion controls for manual aiming.

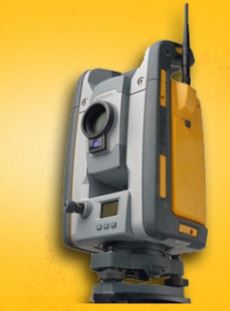

CAT Universal Total Station SPS730b

SurePoint™

  • Automatically corrects the horizontal and vertical angles and instrument pointing for mislevelment of the instrument.
  • Means your measurements will be accurate, even if you don’t set up the instrument perfectly level.

20Hz Update Rate

  • Fixed, low latency, synchronized data and a 20 Hz update rate.
  • Reliably track a machine target and know the data is being passed from the instrument to the machine as quickly and accurately as possible.
  • The motor grader or dozer operator can conduct real-time fine grading operations to millimeter accuracy while minimizing rework and increasing productivity.

3Hz DR Scanning

  • Super fast scanning capability for vertical / sloping profile measurements and stockpile scans.
  • Significantly reduces the time to measure material stockpile volumes or profile rock faces safely.

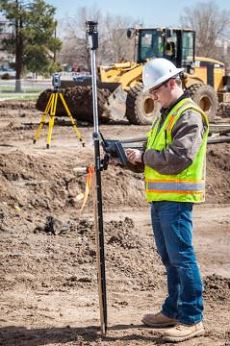

CAT Universal Total Station SPS930

To request a demo or more information, please click here and supply the requested info.
You will be contacted by a rep within 24 hrs or less that serves your product type and area.
