SERVING THE INDUSTRY SINCE 1933

Weiler® Compactors

Weiler split-drum static rollers provide the compaction pressure you need, whether working on base materials or an asphalt mat.

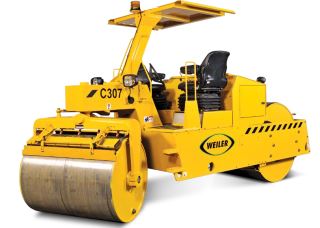

C-Series Spit Drum Static Rollers


Model	H x L X W "	Ground Clearance	Wheel base	HP
C307	106.7 x 185.7 x 63.6	16.5"	132"	84
C310	106.7 x 185.7 x 63.6	16.5"	132"	84
C315	111 x 201.5 x 63.6	20.0"	141"	84

Weiler® Windrow Elevators

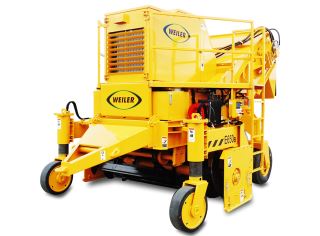

When you're searching for those smooth ride bonuses, a Weiler elevator is sure to best meet your needs. Our E650B and E550B windrow elevators offer 115-horsepower, Cat C4.4 Tier IVi engines. The units are designed to easily hook to your paver, pick up the windrow from the ground and place it in the paver.


	Engine		Length w/Raised
Model	(hp)	H x L x W (Wings out)	Towing Frame (in)
E650B	Cat 4.4 115 hp Tier IV	124" x 230" x 184"	188
E550A	Cat 4.4 114 hp Tier III	116" x 208" x 124"	160

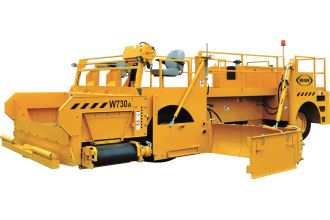

Weiler® Road Wideners

When it comes to placing the right amount of material at the correct grade and slope in one pass — whether on a shoulder or elsewhere — the best equipment for the job is a Weiler road widener, which comes in four convenient sizes.


Model	Engine	Hydraulic Drive	Steering	Widening width (in)
W730A	Cat C6.6 174 hp	4-wheel hydrostatic	4-wheel steer	1' - 14'
W530	Cat 4.4 114 hp Tier III	Front wheel hydrostatic	2-wheel std, 4 Wheel opt	1' - 10'
W430	Cat 83 hp Tier III	Front wheel hydrostatic	2-wheel std, 4 Wheel opt	1' - 8'
W330	Cat 2.2 49 hp Tier IVA	Front wheel hydrostatic	2 wheel front	1' - 6'

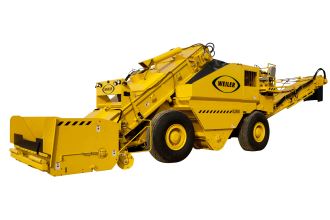

Weiler® Remixing transfer vehicle

Non-contact, non-stop asphalt paving is easier when you use a Weiler remixing transfer vehicle. These vehicles offer an array of impressive standard and optional features.


Model	Engine	Height (in)	Length (in)	Conveyor Slat Width (in)	Elevator Slat Width (in)
E2850	Cat C9 300 hp Tier III	136/192	627/662	30	58
E1250A	Cat C7 250 hp Tier III	138	540	30	58

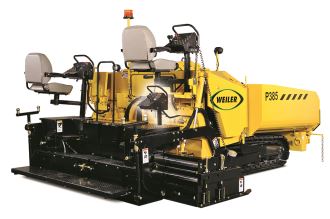

Weiler® Paver

Paving just got easier with maneuverability and versatility of a Weiler commercial paver. This unit offers an array of impressive standard and optional features.
