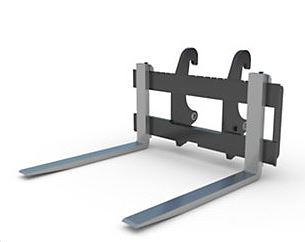

Caterpillar Forks
We offer for sale the following types of forks:
- Wheel Loader Forks
- Skid Steer Loader Forks
- Telehandler Forks
|
|
| Caterpillar Forks for Loaders |
|
|
|
|
|
|
|
|
|
| Fusion Couplers |
|
|
|
|
Model |
Type |
Tine
Length (in) |
Carriage
Width (in) |
Carriage
Height (in) |
| 1524MM-1826 MM |
Construction Forks |
60, 72 |
96 |
54 |
| 1.2M - 1.8M (48 in -60 in) Tine |
Pallet Forks |
48, 54, 60 |
62 |
41 |
| 1.2M - 1.8M (48 in -72 in) Tine |
Pallet Forks |
48, 60, 72 |
88 |
44.6 |
| 1.5M -2.4M (60 in-96in) Tine |
Pallet Forks |
60, 72, 84 or 96 |
100 |
52.5 |
| 1.8M (72 in )Tine, HPL Coupler |
Pallet Forks |
72 |
112 |
62 |
| 2.4M (96 in) Tine |
Pallet Forks |
96 |
123 |
46 |
|
|
|
|
|
|
|
|
|
|
| Pipe & Pole Forks (Loaders) |
|
|
|
|
Model |
Type |
Carriage
Width (in) |
Tine
Length (in) |
Weight
(lbs) |
| 2813 MM (110 in) |
Pipe & Pole Fork |
110 |
72 |
4456 |
| 2813 MM (110 in) |
Pipe & Pole Fushion Coupler |
110 |
72 |
3800 |
| 2813 MM (110 in) |
Pipe & Pole Fushion Coupler |
110 |
72 |
4556 |
| 2813 MM (110 in) |
Pipe & Pole IT Coupler |
110 |
72 |
3800 |
| 3131 MM (123 in) |
Pipe & Pole Fork |
123 |
96 |
6622 |
| 3131 MM (123 in) |
Pipe & Pole Fushion Coupler |
123 |
96 |
6622 |
| 2731 MM (108 in) |
Pipe & Pole Fork |
108 |
72 |
4500 |
|
|
|
|
|
|
|
|
|
|
| Unloading Grapple Forks |
|
|
|
|
Model |
Type |
Fork
Width (in) |
Width
Over Tires (in) |
Width
Between Tines (in) |
| 1832 MM (108 in) |
Fusion Coupler |
72 |
72 |
55 |
| 1850 MM (73 in) |
Fusion Coupler |
73 |
73 |
52 |
| 1850 MM (73 in) W/Kick out Fushion |
Fusion Coupler |
73 |
73 |
52 |
|
|
|
|
|
|
|
|
|
|
| Caterpillar Forks for Skid Steer Loaders |
|
|
|
|
|
|
|
|
| Model |
Type |
Spec 1 |
Spec 2 |
Spec 3 |
| 1676 MM (66 in) |
Industrial Grapple Forks |
Width
66 in |
Height (grapples closed)
32 in |
Jaw Opening
38 in |
| 1829 MM (72 in) |
Industrial Grapple Forks |
Width
72 in |
Height (grapples closed)
32 in |
Jaw Opening
38 in |
| 1070 MM (42 in) |
Pallet Forks |
Fork Tine Length
42 in |
Carriage Height
37 in |
Fork Tine Width
4.0 in |
| 1220 MM (48 in) |
Pallet Forks |
Fork Tine Length
48 in |
Carriage Height
37 in |
Fork Tine Width
4.0 in |
| 910 MM (36 in) |
Pallet Forks |
Fork Tine Length
36 in |
Carriage Height
37 in |
Fork Tine Width
4.0 in |
| 1676 MM (66 in) |
Utility Forks |
Width
66 in |
Height
23 in |
Length
37 in |
| 1829 MM (72 in) |
Utility Forks |
Width
72 in |
Height
23 in |
Length
37 in |
| 1676 MM (66 in) |
Utility Grapple Forks |
Width
66 in |
Height (grapples closed)
30 in |
Jaw Opening
34.5 in |
| 1829 MM (72 in) |
Utility Grapple Forks |
Width
72 in |
Height (grapples closed)
30 in |
Jaw Opening
34.5 in |
|
|
|
|
|
|
|
|
|
|
| Caterpillar Forks for Telehandlers |
|
|
|
|
|
|
|
|
Model |
Type |
Fork Tine
Length (in) |
Fork Tine
Width (in) |
Fork Tine
Thickness (in) |
| 1220 MM (48 in) |
Block Forks |
48 |
2 |
2 |
| 1219 MM (48 in) |
Pallet Forks |
48 |
4 |
2.36 |
| 1219 MM (48 in) |
Pallet Forks |
48 |
5 |
2.36 |
| 1219 MM (48 in) |
Pallet Forks |
48 |
4 |
2 |
| 1525 MM (60 in) |
Pallet Forks |
60 |
6 |
2.36 |
For more information on CAT Fork Attachments
please contact us at 305-592-5360
|
