Metso Screens
|
|
Metso CVB™ Inclined Screens
As part of Metso’s PREMIER screen series, the CVB™ is fully configurable, designed to incorporate any type of screening media for maximum operational flexibility, all while achieving safe and simple maintenance.
| Model |
Deck Dimension |
Area |
| CVB100 Series |
1 565 x 3 360 mm (5' x 12') |
5.7m2 (60 ft2) |
| CVB200 Series |
1 870 x 4 880 mm (6' x 16') |
9.1m2 (96 ft) |
| CVB300 Series |
2 480 x 6 100 mm (8' x 20') |
11.4 m2 (120 ft2) |
| CVB400 Series |
2 480 x 6 100 mm (8' x 20') |
15.1m2 (160ft2) |
| CVB500 Series |
2 480 x 7 320 mm (8' x 24') |
18.2m2 (192 ft2) |
| CVB600 Series |
3 070 x 7 320 mm (10' x 24') |
22.5m2 (240 ft2) |
Metso Premier TS™ multislope screens
As part of the Metso PREMIER screen series, the TS™ is fully configurable, designed to incorporate any type of screening media for maximum operational flexibility, all while achieving safe and simple operation.
| Model |
Deck Dimension |
Area |
| TS2 Series |
1 500 x 5 000 mm (5' x 16') |
7.5m2 (80.4 ft2) |
| TS3 Series |
1 800 x 6 000 mm (6' x 20') |
10.8m2 (116.2 ft2) |
| TS4 Series |
2 400 x 6 000 mm (8' x 20') |
14.4m2 (155.6 ft2) |
| TS5 Series |
2 400 x 8 300 mm (8' x 27') |
20m2 (214.9ft2) |
| TS6 Series |
3 000 x 8 300 mm (10' x 27') |
25m2 (269 ft2) |

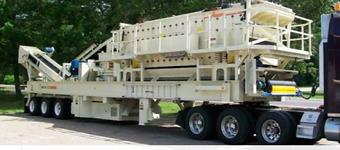

Mesto Compact FS Screens
As part of the Metso COMPACT screen series, the FS™ is designed for fixed and mobile plants, integration into tight spaces and includes carefully selected features in a standard configuration, for easy and reliable operation.
| Model |
Deck Dimension |
Area |
| FS250-M Series |
1 870 x 4 880 mm (6'x 16') |
9m2 (96ft2) |
| FS300-M Series |
1 870 x 6 100 mm (6' x 20') |
11m2 (120 ft2) |
| FS350-M Series |
2 180 x 6 100 mm (7' x 20') |
13m2 (140 ft2) |
| FS400-M Series |
2 480 x 6 100 mm (8' x 20') |
15m2 (160 ft2) |
Metso PREMIER ES Horizontal Screens
As part of the PREMIER screen series, the ES™ is fully configurable, designed to incorporate any type of screening media for maximum operational flexibility, all while achieving safe and simple maintenance.
| Model |
Deck Dimension |
Area |
| ES200 Series |
1 870 x 4 880 mm (6' x 16') |
9m2 (96ft2) |
| ES300 Series |
1 870 x 6 100 mm (6' x 20') |
11m2 (120 ft2) |
| ES400 Series |
2 480 x 6 100 mm (8' x 20') |
15 m2 (160 ft2) |
For more information on Metso Aggregate Equipment
please contact Mike Wohlert 561-373-1448
|
