Hydrema Company Logo

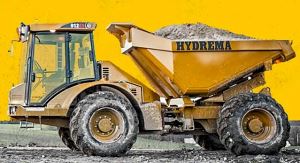

Hydrema Compact Dump Trucks

Hydrema Compact Dump Trucks, the articulated and compact dump trucks with supreme performance, easy to use, low weight and great durability provides efficiency and operating qualities – every day, year after year.


Hydrema Compact Dump Truck

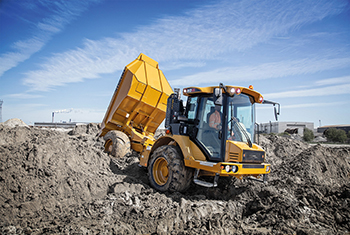

      912G     912GS     912 HM
    Std tip Multi Tip Multi Chasis Std tip Multi Tip Multi Chasis Std tip Std tip Multi tip Multi Chasis Flatbed
Tires   600/
55-26.5		 600/
55-26.5		 600/
55-26.5		 600/
55-26.5		 600/
55-26.5		 600/
55-26.5		 800/
45x30.5		 600/
60x30.5		 800/
45x30.5		 600/
60x30.5		 800/
45x30.5
Total Weight lbs 38074 39087 39683 38669 39683 39683 40256 39617 41270 39683 40256
Unladen weight lbs 16027 17042 13448 16623 17637 13669 18210 17571 19224 15212 18210
Load Capacity lbs 22046 22046 26235 22046 22046 25794 22046 22046 22046 24471 22046
Ground Pressure  psi 17.69 17.84 - 17.84 18.13 - 12.33 16.39 12.47 - 12.33
Width, dump body ft' in" 7'3" 7'3" - 7'3" 7'3" - 7'3" 7'3" 7'3" - 8'2"
Total height ft' in" 9'0" 9'0" 9'0" 9'2" 9'2" 9'" 9'5" 9'5" 9'5" 9'5" 9'5"
Loading height ft' in" 7'4" 7'10" - 7'3" 7'11" - 7'8" 7'8" 8མ" - 6'5"
Wheelbase ft' in" 10'1" 10'1" 10'1" 10'1" 10'1" 10'1" 10'1" 10'1" 10'1" 10'1" 11'5"
Tipping clearance ft' in" 3'8" 4'2" - 3'7" 4'2" - 3'11" 3'11" 4'6" - 1'4"
Turning radius ft' in" 20'0" 20'0" 20'0" 20'0" 20'8" 20'0" 20'8" 20'0" 20'8" 20'8" 20'11"
Tipping angle Degrees 75 75 - 75 75 - 75 75 75 - 72

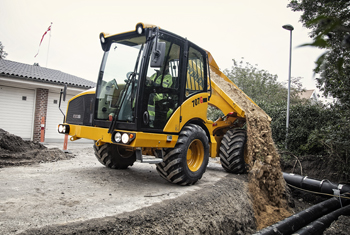

      707G     707G+   707G Power+ MultiChassis   707G Power+ MultiChassis + Flatbed

Tires   500/
60-22.5 		600/
55-26.5		 700/
40-22.5		 500/
60-22.5		 600/
55-26.5		 700/
40-22.5		 500/
60-22.5		 700/
40-22.5		 500/
60-22.5		 700/
40-22.5
Engine Power lbs 75 75 75 122 122 122 122 122 122 122
Total Weight lbs 26125 26235 26345 26235 26345 26455 - - 23479 23590
Unladen weight lbs 11795 11905 12015 11905 12015 12125 9811 9921 11354 11464
Load Capacity lbs 14330 14330 14330 14330 14330 14330 - - - -
Ground Pressure  psi 16.8 14 12 16.8 14 12 - - - -
Width, dump body ft' in" 6'7" 6'7" 6'7" 6'7" 6'7" 6'7" - - 7'5" 7'5"
Total height ft' in" 8'5" 8'5" 8'5" 8'5" 8'5" 8'5" 9'5" 9'5" 9'5" 9'5"
Loading height ft' in" 6'2" 6'2" 6'2" 6'2" 6'2" 6'2" 7'8" 7'8" 8'2" -
Wheelbase ft' in" 8'2" 8'2" 8'2" 8'2" 8'2" 8'2" 8'2" 8'2" 8'2" 8'2"
Tipping clearance ft' in" 3'6" 3'6" 3'6" 3'6" 3'6" 3'6" - - 2'11" 2'11"
Turning radius ft' in" 16'9" 16'9" 16'9" 16'9" 16'9" 16'9" 16'9" 16'9" 16'9" 16'9"
Tipping angle Degrees 69 69 69 69 69 69 - - 55 55


Hydrema Compact Dump Truck Hydrema Compact Dump Truck

Kelly Tractor Co is now a distributor for Hydrema Compact Dump trucks
We have them available for rental and also for purchase


For more information

please contact us at 305-592-5360

Or email us:   leads@kellytractor.com
